measurement 414 mm:Mounting holes 8
voice coil 101.6 mm:Overall diameter 458 mm
nominal load capacity 1200:W maximum rated load 2400
pitch circle diameter 440 mm:Cut- out
b frequency response 20 - 200:Hz
diameter of fixing holes 8.5 mm:Depth 237 mm
Description

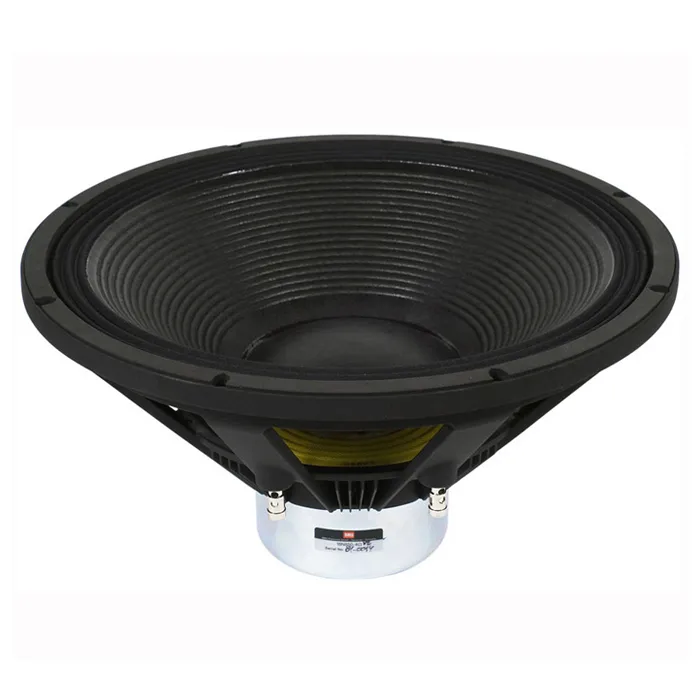

Product type Loudspeaker Chassis Type PA Nominal Diameter 18 " Nominal Diameter 457.2 mm Voice Coil 4 " Voice Coil 101.6 mm Overall diameter 458 mm Pitch Circle Diameter 440 mm Cut- out Measurement 414 mm Mounting holes 8 Diameter of fixing holes 8.5 mm Depth 237 mm Nominal Impedance 8 Ohm(s) Nominal Load Capacity 1200 W maximum rated load 2400 W Sensitivity (1 W / 1 m) 95 dB Frequency response 20 - 200 Hz Voice Coil Material copper Magnet Neodymium Depth of the magnetic gap 12 mm
Source
Visit Manufacturer PageSpot an error?
Suggest a correctionData Summary
Total Fields7
TECHNICAL SPECIFICATIONS(7 fields)
Other
measurement 414 mm
Mounting holes 8
voice coil 101.6 mm
Overall diameter 458 mm
nominal load capacity 1200
W maximum rated load 2400
pitch circle diameter 440 mm
Cut- out
b frequency response 20 - 200
Hz
diameter of fixing holes 8.5 mm
Depth 237 mm
nominal diameter 457.2 mm voice
Coil 4 "
