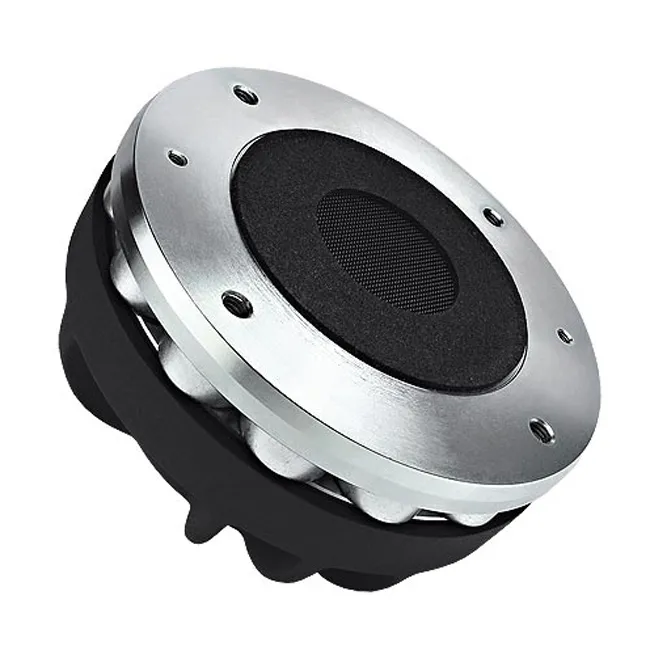

HF 146 B view 1
←Return to Index

Adam Hall Group

HF 146 B

voice coil 65 mm:Overall diameter 123 mm
nominal load capacity 80:W maximum rated load 160
depth 65 mm nominal impedance:16
frequency response 700 - 18000:Hz recommended crossover frequency 900
nominal diameter 35.6 mm voice:Coil 2.56 "
hz voice coil carrier aluminium:Diaphragm material

Description

Product type High-frequency Drivers Nominal Diameter 1.4 " Nominal Diameter 35.6 mm Voice Coil 2.56 " Voice Coil 65 mm Overall diameter 123 mm Depth 65 mm Nominal Impedance 16 Ohm(s) Nominal Load Capacity 80 W maximum rated load 160 W Sensitivity (horn 1 W / 1 m) 109 Frequency response 700 - 18000 Hz recommended crossover frequency 900 Hz Voice Coil Carrier Aluminium Diaphragm material Ketone Polymer Magnet Neodymium Weight 2 kg

Source

Visit Manufacturer Page

Spot an error?

Suggest a correction

Data Summary

Total Fields7

TECHNICAL SPECIFICATIONS(7 fields)

Other

voice coil 65 mm
Overall diameter 123 mm
nominal load capacity 80
W maximum rated load 160
depth 65 mm nominal impedance
16
frequency response 700 - 18000
Hz recommended crossover frequency 900
nominal diameter 35.6 mm voice
Coil 2.56 "
hz voice coil carrier aluminium
Diaphragm material
ketone polymer magnet neodymium
Weight 2 kg
