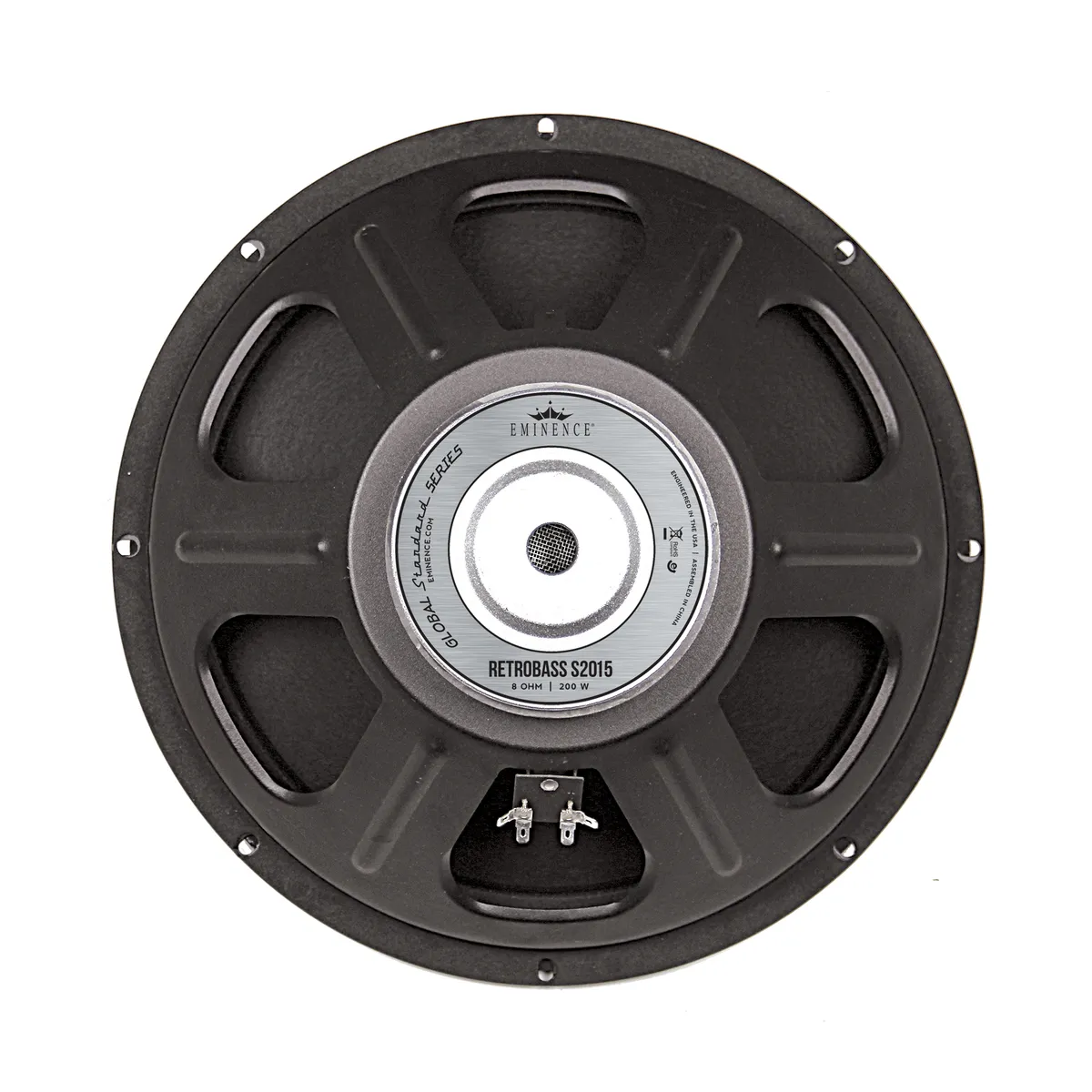

RETROBASS S2015

voice coil 51 mm:Overall diameter 384.8 mm
measurement 351.5 mm:Mounting holes 8
nominal load capacity 200 w:Sensitivity (1
nominal diameter 381 mm voice:Coil 2 "
b frequency response 43 - 4000:Hz
pitch circle diameter 369.8 mm:Cut- out

Description

Product type Loudspeaker Chassis Type PA Nominal Diameter 15 " Nominal Diameter 381 mm Voice Coil 2 " Voice Coil 51 mm Overall diameter 384.8 mm Pitch Circle Diameter 369.8 mm Cut- out Measurement 351.5 mm Mounting holes 8 Diameter of fixing holes 6.4 mm Depth 152.4 mm Nominal Impedance 8 Ohm(s) Nominal Load Capacity 200 W Sensitivity (1 W / 1 m) 97 dB Frequency response 43 - 4000 Hz Voice Coil Material copper Magnet Ferrite

Source

Visit Manufacturer Page

Spot an error?

Suggest a correction

Data Summary

Total Fields7

TECHNICAL SPECIFICATIONS(7 fields)

Other

voice coil 51 mm
Overall diameter 384.8 mm
measurement 351.5 mm
Mounting holes 8
nominal load capacity 200 w
Sensitivity (1
nominal diameter 381 mm voice
Coil 2 "
b frequency response 43 - 4000
Hz
pitch circle diameter 369.8 mm
Cut- out
diameter of fixing holes 6.4 mm
Depth 152.4 mm
