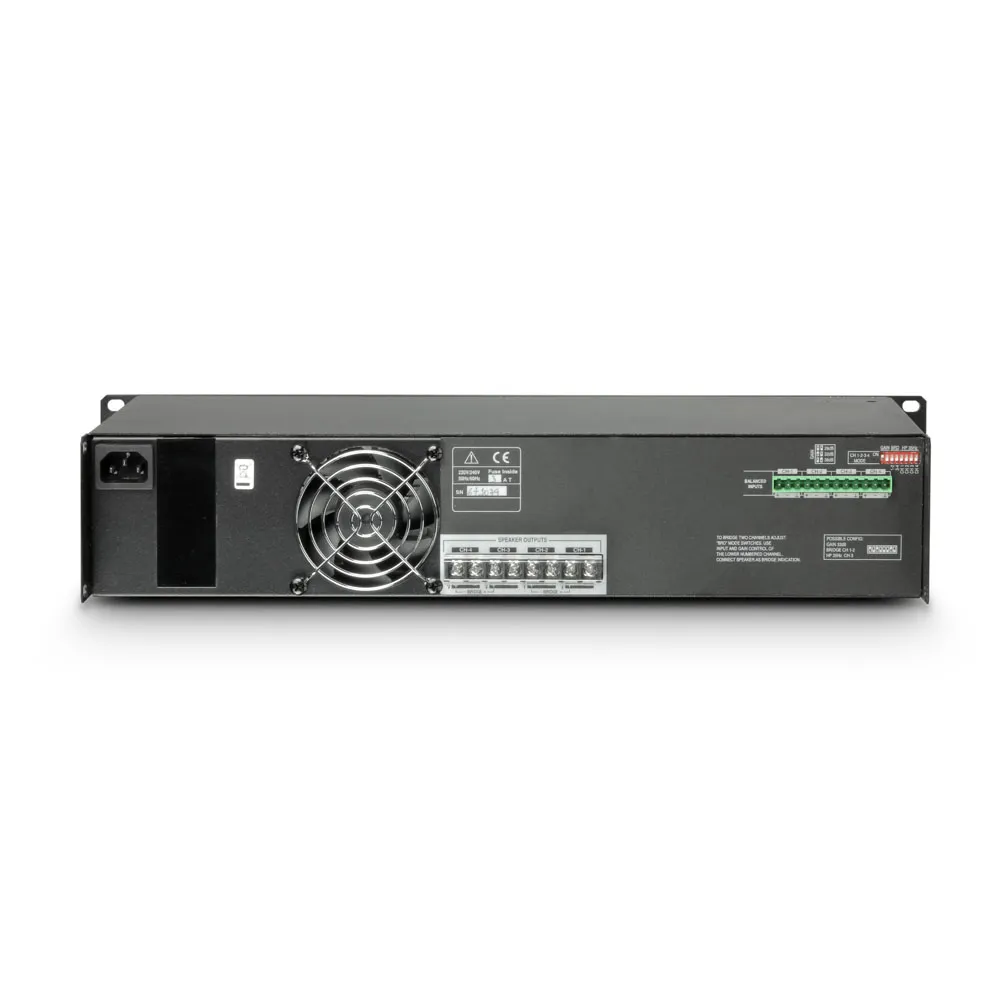

T 1204

Product type Power Amplifiers Type Installation Power Amplifiers Rated ouput power (1kHz @ 4 Ohms) 4 x 220 W Rated ouput power (1kHz @ 8 Ohms) 4 x 220 W Rated ouput power (1kHz @ 8 Ohms, bridged) 2 x 640 W High Z 70Vrms / 100Vpeak 2 x 640 Output circuitry Class H Frequency response 20 - 20000 Total Harmonic Distortion (THD) < 0.05 % Signal-to-noise ratio 110 dB Crosstalk > 70 dB Gain 26 / 32 / 38 dB Input sensitivity 2.1 / 1.0 / 0.5 V Input impedance (balanced) 20 k Ohm(s), (unbalanced) 10 k Ohm(s) Protection circuits on/off transients, DC voltage, high frequency, Short circuit, power on muting, Soft start, open outputs and speaker load mismatching, thermal overload Controls 2 x volume, dual/bridge switch, Power Indicators ready, fault, signal, temperature, Clipping Line inputs 1 Line input connectors terminal block (4 inputs) Loudspeaker outputs 1 Speaker output connections screw terminal (4 inputs) Cooling fan Power supply 230 V Power consumption @ full load 1.5 A Width 483 mm Height 89 mm Depth 210 mm Weight 5,4 kg
