control mode:DMX, Auto & Master/Slave
movement pan:540
movement tilt:270
output lux 5m:16000
control onboard:Battery powered full colour display including gravity sensor
physical colour:Black
Description

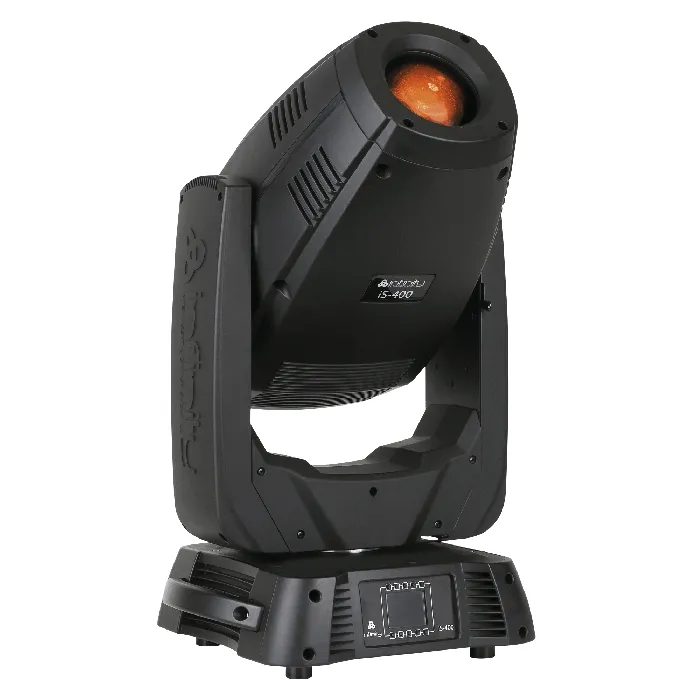

The Infinity® iS-400 is a high-end 440 W LED moving head.
Source
Visit Manufacturer PageSpot an error?
Suggest a correctionData Summary
Total Fields39
TECHNICAL SPECIFICATIONS(39 fields)
Other
control mode
DMX, Auto & Master/Slave
movement pan
540
movement tilt
270
output lux 5m
16000
control onboard
Battery powered full colour display including gravity sensor
physical colour
Black
physical weight
35
movement special
Pan/ Tilt, Colour, Gobo change blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, 270°/180°/90°, Reverse Pan / Tilt movement
physical housing
Metal & Flame-retardant plastic
output beam angle
13
optical system iris
Motorized 0-100%
optical system zoom
Motorized
output light source
440
control wireless dmx
optional available
optical system focus
Motorized autofocus
optical system prism
3
gobos colours rotation
Bi-directional
movement pantilt modes
Speed / Smooth
control battery lifetime
max 30 days (full charge)
control control protocol
DMX512, Artnet
electrical input voltage
100
optical system animation
Digital motion FX
physical data connection
XLR 3&5p & RJ-45 in- & output
gobos colours colourwheel
7
physical dimensions wxdxh
346
physical power connection
Powercon input
control control personality
Advanced 38ch /Basic 28ch
movement pantilt resolution
16
optical system frost filter
Yes
electrical power consumption
650
gobos colours gobo functions
Gobo-flow effect,Gobo shake
gobos colours colour functions
Split colours, Rainbow-flow effect, CMY Macros
gobos colours gobo outer diameter
32
gobos colours rotating gobowheel 1
6
gobos colours rotating gobowheel 2
6
gobos colours gobo 1 inner diameter
28
gobos colours gobo 2 inner diameter
26
certification and safety certification
CE
certification and safety max ambient temp
40
